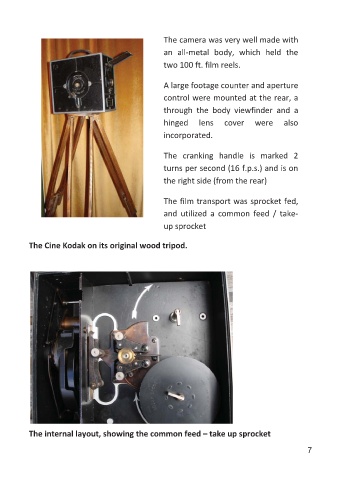

The camera was very well made with
an all-metal body, which held the
two 100 ft. film reels.
A large footage counter and aperture
control were mounted at the rear, a
through the body viewfinder and a
hinged lens cover were also
incorporated.
The cranking handle is marked 2
turns per second (16 f.p.s.) and is on
the right side (from the rear)
The film transport was sprocket fed,
and utilized a common feed / take-
up sprocket
The Cine Kodak on its original wood tripod.
The internal layout, showing the common feed – take up sprocket
7
